How to install and configure Sentinel Firewall on Ubuntu 24.04

Sentinel is a popular VPS security tool for Linux. It provides a simple interface for iptables to protect Linux servers. Sentinel comes with multiple features: a stateful packet inspection firewall (SPI), intrusion detection, a login failure daemon, DDOS protection, and control panel integration. This tutorial covers installation, basic configuration, and essential commands for CSF on Ubuntu 24.04.

1. Deploy Ubuntu Server

• Deploy a new Ubuntu 24.04 VPS instance.
• Connect to the server via SSH as root.

2. Prepare for Sentinel

Ubuntu 24.04 comes with the UFW firewall by default, which must be removed before installing Sentinel.

apt remove ufw

Install the dependenciesČ

apt install perl zip unzip libwww-perl liblwp-protocol-https-perl

Sendmail is required to send alerts to the administrator:

apt install sendmail-bin

3. Install Sentinel

1. Change to /usr/src

   cd /usr/src

2. Download the latest Sentinel from GitHub:

   wget https://github.com/sentinelfirewall/sentinel/raw/refs/heads/main/csf.tgz

3. Extract CSF:

   tar -xzf csf.tgz

4. Change to /usr/src/csf

   cd csf

5. Run the install script:

   sh install.sh

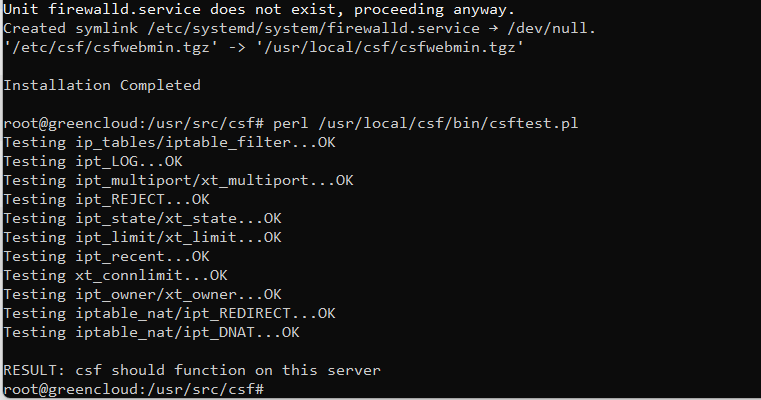

6. Verify the required iptables modules for CSF are available:

   perl /usr/local/csf/bin/csftest.pl

   Confirm that all tests report OK, and you see the following result.



7. Verify CSF status after installation.

   csf -v

   You should see a result similar to:



4. Configure Firewall

1. CSF runs in TESTING mode by default. Edit /etc/csf/csf.conf to disable the TESTING mode:

nano /etc/csf/csf.conf

Locate the line TESTING = "1", and change the value to “0“.

TESTING = "0"

2. Locate the line RESTRICT_SYSLOG = "0", and change the value to “3“. This means only members of the RESTRICT_SYSLOG_GROUP may access syslog/rsyslog files. More information

RESTRICT_SYSLOG = "3"

Save the configuration file.
3. Stop and reload CSF with the -ra option.

csf -ra

4. Common Commands & Configuration

Start CSF

csf -s

Stop CSF

csf -f

Restart CSF

You must restart CSF each time the configuration file changes.

csf -ra

Allow IP traffic by port

Edit /etc/csf/csf.conf

nano /etc/csf/csf.conf

Locate the following lines and add the required ports:

# Allow incoming TCP ports
TCP_IN = 20,21,22,25,26,53,80,110,143,443,465,587,993,995,2077”

# Allow outgoing TCP ports
TCP_OUT = 20,21,22,25,26,37,43,53,80,110,113,443,465,873,2087”

Restart CSF for the changes to take effect.

csf -ra

Allow or deny by IP address

Use the -d option to deny by IP, for example, 192.0.2.123.

csf -d 192.0.2.123

Use the -a option to allow by IP, for example, 192.0.2.123.

csf -a 192.0.2.123

Remove IP from the allow list.

csf -ar 192.0.2.123

Remove IP from the deny list.

csf -dr 192.0.2.123

Deny file

Block IPs by adding an entry to /etc/csf/csf.deny:

192.0.2.123     # deny this IP
192.0.2.0/24    # deny this network

Allow file

Add trusted IPs to /etc/csf/csf.allow:

192.0.2.123     # trust this IP

Check all listening ports with the -p option:

csf -p

More Information

For more information about VPS security, see the Documentation.
